Best Heavy Duty Crane Solutions for Steel Plants, Ports and Manufacturing Facilities

A crane is the backbone of any heavy-duty facility. When it breaks, everything stops.

In fact, that single reality makes choosing the right lifting equipment one of the costliest decisions a plant manager will ever face. Get it wrong, and the consequences pile up fast. For example, unplanned downtime, safety incidents, and retrofit bills that blow through budgets.

So how do you match crane capabilities to the brutal demands of steel plants, ports, and manufacturing floors? This guide cuts through the noise. It covers crane types, real-world specs, comparison tables, and a simple four-step process. As a result, engineering teams can lock in the right machine the first time.

What Defines a Heavy Duty Crane?

Here’s the thing — not every overhead crane earns the “heavy duty” label. The classification comes down to three factors: working class, load capacity, and duty cycle. Skip any one of them, and you’re spec’ing blind.

Working Class A6–A8 Explained

FEM and ISO standards sort cranes into classes from A1 to A8. Light, occasional use sits at A1. Extreme, around-the-clock heavy service sits at A8. Heavy duty lives in the A6 to A8 range:

• A6 (Heavy): Intermittent heavy loads — roughly 250–500 operating hours per quarter.
• A7 (Very Heavy): Frequent heavy loads, about 500–1,000 hours per quarter.
• A8 (Extra Heavy / Severe): Near-continuous full-load operation, 1,000+ hours per quarter.

Steel plants and major ports almost always need A7–A8. Meanwhile, a mid-size manufacturing plant might get by with A6 in most bays.

Load Capacity Range

Heavy duty cranes handle anything from 10 tons to 500 tons and beyond. Here’s how the capacity tiers typically break down:

One rule that never fails: rated capacity should beat the heaviest planned lift by at least 15–20%. That buffer covers rigging weight. Plus, it leaves room for future expansion.

Duty Cycle and Operating Hours

Duty cycle is simply the ratio of running time to rest time within a shift. Heavy duty cranes are built for high use — often 60–80% of every available shift hour.

Take a steel mill, for example. Cranes might run 24 hours a day, 365 days a year. In that environment, the motor, gearbox, brake, and electrical systems must hold up under sustained thermal stress. They can’t just survive short bursts.

Heavy Duty Crane Solutions for Steel Plants

Steel plants are unforgiving. First, there’s extreme heat. Then, thick particulate dust. On top of that, molten metal sits everywhere. Production schedules never slow down. As a result, every one of these factors piles enormous stress on lifting equipment.

Typical Steel Plant Crane Requirements

Three environmental realities drive crane specs in steel facilities:

• Temperature resistance: Cranes near furnaces or hot-rolling mills face ambient temps of 50°C–80°C. Radiant heat can go above 200°C. That means special heat shields and high-temp lubricants — no shortcuts.
• Dust and particulate protection: Steelmaking throws off abrasive iron oxide dust constantly. So electrical cabinets need IP54+ protection at minimum. Also, mechanical parts demand sealed housings.
• Continuous operation: Most steel mill cranes don’t get days off. They run 20–24 hours daily. Therefore, every component must carry an A7–A8 duty rating with minimal planned downtime.

Recommended Crane Types

Each process stage has its own crane. Here’s the mapping:

Ladle cranes deserve extra attention here. They carry molten steel at 1,500°C+. In fact, they’re possibly the most safety-critical asset in the entire plant. Dual braking systems, redundant hoist ropes, and emergency lowering mechanisms are all mandatory.

Billet and slab cranes work the continuous casting area. They handle hot loads and need pinpoint accuracy. Outfit them with C-shaped forks or vacuum lifters, and handling efficiency jumps noticeably.

Coil handling cranes in rolling mills do better with motorized rotators and adjustable spreader beams. As a result, coil edges stay protected and warehouse throughput picks up speed.

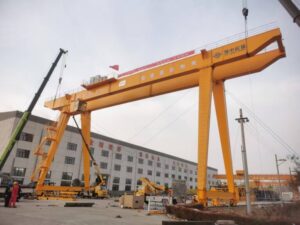

For example, Yuzhong‘s MG series gantry cranes — built on 48 years of manufacturing experience — handle loads from 5 to 500 tons in heavy industrial environments. Their ladle cranes come standard with Siemens motors and SKF bearings, which hold up reliably even in the extreme heat near furnaces. In 2025, a steel mill in Vietnam upgraded its ladle crane system. As a result, it saw a 35% reduction in downtime within six months. That’s largely because the new cranes were spec’d to A8 with redundant braking as standard.

Heavy Duty Crane Solutions for Ports

Ports never sleep. Salt air eats through unprotected metal. Cargo types change by the hour. And the sheer scale of modern container shipping means crane speed directly determines whether a terminal wins or loses business.

Port Crane Requirements

Marine terminals throw a unique combination of challenges at crane operators:

• Salt air corrosion: Every structural member and mechanical part faces constant chloride attack. So marine-grade paint systems (C5-M per ISO 12944) and stainless-steel hardware aren’t optional — they’re survival gear.
• 24/7 operation: Major ports don’t shut down. Ship-to-shore cranes typically need to hit 25–35 moves per hour. Meanwhile, they must sustain A7–A8 duty cycles.
• Diverse cargo handling: One berth might see containers, the next bulk ore, then steel coils or project cargo. Therefore, quick attachment swaps and versatility matter a lot.

Recommended Crane Types

Ship-to-shore (STS) cranes are the iconic giants at every major container port. Today’s STS models reach across 24-container-wide vessels. They also hoist at speeds over 150 meters per minute. However, they’re enormously expensive. So the selection needs to tie directly to vessel forecasts and throughput math — not gut feeling.

Rubber-tyred gantry (RTG) cranes bring flexibility to container yards. You can park them wherever traffic patterns shift. In addition, a growing number of modern RTGs have ditched diesel generators for electric power supply. As a result, they cut both emissions and fuel costs.

Anti-Corrosion and Weather-Proofing

You can’t fight salt air halfway. Ports need serious corrosion protection:

• First, hot-dip galvanizing of structural members wherever possible
• Also, C5-M marine coating systems built to last 15+ years — manufacturers like Yuzhong apply C5-M protection as standard on all port-bound gantry cranes
• Next, sealed bearing housings with grease-purge systems
• Then, stainless-steel fasteners and electrical connectors
• Finally, wind-speed monitoring paired with automatic storm-proof anchoring

One more thing: set up regular inspection schedules to catch coating degradation early. Because once structural corrosion starts, repairs get expensive fast.

Heavy Duty Crane Solutions for Manufacturing Facilities

Manufacturing floors play by different rules. The priorities shift toward precision, clean operation, and adaptability. In fact, a crane that works great in a steel mill might be overkill — or worse, the wrong fit — on an assembly line.

Manufacturing Crane Requirements

Three requirements tend to dominate manufacturing crane specs:

• Clean environment: Aerospace, automotive, and electronics shops can’t tolerate particulate contamination. So enclosed hoists and food-grade lubricants sometimes show up in the spec sheet.
• Precision positioning: Assembly lines often need lifting accuracy within ±5 mm. For this reason, variable frequency drives (VFDs) on hoist and trolley motions give operators that micro-speed control.
• Variable loads: Unlike a steel mill that picks up similar loads all day, a manufacturing bay faces different challenges. It might handle a 2-ton mold in the morning and a 50-ton press in the afternoon. Therefore, dual-trolley or auxiliary hook setups solve that problem well.

Recommended Crane Types

Automation Integration

Manufacturing cranes don’t operate in isolation anymore. The trend? Deeper integration with facility-wide automation:

• Remote control and semi-automated operation: Operators steer cranes from ground stations or control rooms. As a result, the process becomes safer, leaner, with fewer people in the drop zone.
• Load monitoring and diagnostics: Real-time load cells, motor current analysis, and vibration sensors feed predictive maintenance platforms. So failures get caught before they happen.
• Collision avoidance: When multiple cranes share a runway, laser-based anti-collision systems keep safe clearance. Meanwhile, nobody gets slowed down.

Some buyers are also wiring crane management data straight into their MES or ERP platforms. In addition, this delivers full material-movement traceability at no extra hardware cost.

In 2024, an automotive parts manufacturer in Thailand integrated its overhead cranes with the plant’s MES system. As a result, it cut material-tracking errors by 60% in the first quarter.

How to Match Crane Specs to Your Facility

Picking the right crane isn’t a guesswork exercise. Four steps, done in order, will narrow things down fast.

Step 1: Assess Daily Operating Hours

Start with total crane run-time per day, per shift. This number alone locks in the working class:

• Under 3 hours/day: A4–A5 (medium duty) likely covers it.
• 3–8 hours/day: A5–A6 (heavy duty) fits the profile.
• 8–16 hours/day: A6–A7 (very heavy duty) — don’t go lower.
• 16–24 hours/day: A7–A8 (extra heavy / severe service). Non-negotiable.

Step 2: Determine Max Load and Load Frequency

What’s the heaviest lift? And how many times a day does it happen? Both answers matter. A 100-ton crane lifting 80 tons hundreds of times daily still needs an A7 rating. In other words, peak weight alone doesn’t tell the full story.

Step 3: Measure Span, Lifting Height, and Runway Length

Get the physical dimensions right:

• Span (rail-to-rail distance) drives girder design — and cost.
• Lifting height (lowest to highest hook travel) must clear the tallest load plus a safety margin.
• Runway length (total travel distance) shapes motor sizing and power feed design.

Step 4: Select Working Class (A1–A8)

Combine operating hours, load spectrum, and duty cycle. Then land on a target working class per FEM 9.511 or ISO 15010. One piece of advice: if there’s any chance of production expansion, spec one class above the calculated minimum. Because upsizing a crane after installation? That’s a budget killer.

Decision Summary

Operating Hours → Load Spectrum → Span/Height → Working Class → Crane Type → Supplier Shortlist

Follow this chain and dozens of options collapse into a manageable shortlist.

What to Look for in a Heavy Duty Crane Supplier

The right crane matters. The right supplier matters just as much. In fact, a well-spec’d crane with poor backing turns into expensive frustration fast.

Manufacturing Capacity and Facility Scale

Does the supplier actually have the floor space, heavy-lift bays, and in-house machining to build large cranes? Machines over 200 tons or 40-meter spans need dedicated assembly and testing areas. A supplier with solid manufacturing infrastructure delivers on time. Also, it handles custom work without sweating.

International Certifications

Certifications aren’t just paperwork — they show whether a manufacturer follows internationally recognized quality and safety standards:

Some buyers also look for AISC membership, OSHA compliance records, or country-specific approvals. So know what your market demands before the RFP goes out. A handful of established Chinese manufacturers — including Yuzhong, which carries ISO, FEM, ASME, and CE marks simultaneously — meet every certification tier that major steel and port operators worldwide expect.

Track Record in Your Industry

Here’s a question that separates good suppliers from average ones: how many cranes have they delivered to your specific sector? A manufacturer that’s installed 50 ladle cranes in steel mills understands thermal challenges. A generalist might miss those. Always ask for reference lists and site-visit access.

After-Sales Service and Spare Parts Availability

A day of lost steel production can burn through $500,000 in revenue. That’s the reality. The supplier needs to ship critical spare parts within 48–72 hours. They also need to send field techs when things go sideways and offer remote diagnostics. A supplier with local service centers in your region holds a real advantage. Otherwise, you’ll wait for international dispatches for every call.

FAQ

1. What crane do I need for a steel plant?

Short answer: A7–A8 duty class, with heat-resistant and dust-proof specs across the board. Ladle cranes (100–500 T) handle the steelmaking area. Billet cranes (20–80 T) manage continuous casting output. Coil cranes (20–50 T) cover rolling mills. The exact pick depends on which process stage, the heaviest load, and how many hours per day the crane runs.

2. What are the best cranes for port operations?

It depends on what’s moving through the port. Container terminals run on ship-to-shore (STS) cranes (40–65 T) and rubber-tyred gantry cranes. Bulk cargo? Grab bucket gantry cranes handle ore and coal. Heavy-lift terminals need modular gantry rigs rated 100–1,000+ tons. One thing every port crane needs: marine-grade corrosion protection, C5-M coating at minimum.

3. How do I choose a heavy duty crane for a manufacturing facility?

Think precision first, then cleanliness, then flexibility. VFD-controlled single or double girder cranes in the 5–50 T range handle most manufacturing tasks. Cleanroom environments call for enclosed hoists. The real question is how the crane integrates with existing automation — that’s usually the deciding factor.

4. What’s the difference between A6 and A8 crane duty class?

A6 means heavy intermittent use — about 250–500 hours per quarter at or near rated load. A8 is near-continuous severe service, north of 1,000 hours per quarter, flat-out at full load. A8 cranes get oversized motors, upgraded cooling, higher-grade gearboxes, and beefier fatigue-resistant structural design. It’s a fundamentally different machine.

5. How long does a heavy duty crane last?

Take good care of one, and it’ll run 25–40 years or more. The steel structure — girders, end trucks — often outlasts the mechanical and electrical systems by decades. But wire ropes, brakes, wheels, and contactors wear out. So they need replacing on schedule. Actual lifespan boils down to duty class, maintenance discipline, environmental harshness, and whether the original maker still supplies parts.
