Crane Solutions for Mining Industry

Choosing a crane for a mining site is not like buying equipment for a regular factory. The stakes are higher. One wrong decision can mean months of unplanned downtime, safety incidents, or a crane that simply cannot survive the environment you put it in.

After nearly 48 years of building cranes for heavy industry, we have seen the same mistakes happen again and again. A mine buys a crane that is “close enough” to the spec — and it fails within three years. Another operation picks the cheapest option, only to spend double on repairs and lost production.

This guide cuts through the technical noise. We will walk you through exactly what to think about when selecting cranes for mining operations. No jargon for jargon’s sake — just the practical knowledge you need to make the right call.

Why Mining Crane Selection Is Different

Before we get into crane types, let’s talk about what makes mining so unforgiving.

Most industrial cranes work in clean, temperature-controlled buildings. Mining cranes deal with something completely different:

• Abrasive dust— Coal dust, silica, and ore fines get into every gap. They wear down moving parts and ruin lubricants fast.
• Constant moisture— Underground mines, ore washing plants, and tropical open-pit sites keep cranes wet around the clock.
• Non-stop vibration— Blasting, heavy trucks, and crushers create shock loads that loosen bolts and crack welds.
• Extreme temperatures— Desert sites hit 50°C. Deep underground, the air can top 40°C. Arctic mines run below -30°C.

On top of that, mining cranes often run 24/7 at near-full capacity. That is a duty cycle most factory cranes never face. So when you choose a crane, you need one built for punishment — not just adequate on paper.

The 5 Most Common Mining Crane Mistakes (And How to Avoid Them)

In our experience serving mining clients around the world, here are the errors we see most often:

Mistake #1: Specifying a duty class that is too low

This is the single most costly mistake. The duty class (A5 through A8) tells you how many hours per year the crane can run at full load. An A5 crane is rated for about 1,000 hours. An A8 crane handles 2,400+ hours.

If your ore processing line runs 24/7, you need A7 or A8. Putting in an A6 crane to save money sounds smart — until the structure shows fatigue cracks at month 18. Always match the duty class to your actual operating hours, not the brochure rating.

Mistake #2: Ignoring dust and corrosion protection

Many buyers focus on capacity and span but skip the details that keep a crane alive in harsh conditions. Electrical enclosures must be rated IP65 or higher. Without sealed junction boxes and filtered cabinet ventilation, dust will kill your electronics within months.

For coastal mines or sites with acidic drainage, standard paint is not enough. You need a zinc-rich primer plus a polyurethane topcoat at minimum. In the worst cases, hot-dip galvanized structural members are the only real option.

Mistake #3: Overlooking explosion-proof requirements

If you operate a coal mine or handle combustible materials, this is not optional. You need ATEX or IECEx-certified equipment — explosion-proof motors, spark-proof travel wheels, and intrinsically safe control circuits.

We have seen sites where the crane was installed and then the safety inspector shut it down because the certification paperwork was incomplete. Get your documentation sorted before the crane ships. You need the EU Declaration of Conformity, test certificates, and a hazardous area instruction manual.

Mistake #4: Forgetting about redundancy

In critical lifting — especially molten material handling or underground personnel lifts — a single failure can be catastrophic. Your crane needs dual braking systems, dual upper limit switches, and a backup power supply for controlled lowering. These are not “nice to have” extras. They are essential safety features.

Mistake #5: Not planning for remote monitoring

Modern mines want real-time data. Load readings, position tracking, fault alerts — all sent to your SCADA system. If you skip this at the buying stage, retrofitting sensors and wiring later is far more expensive. Even if you do not need full remote monitoring today, make sure your crane is “monitoring-ready” so you can add it later.

Crane Types for Mining: Which One Fits Your Application?

Now let’s look at the actual crane options. The right choice depends on what you need to lift, where, and how often.

Ore Extraction and Material Handling

Best choice: Heavy-duty double girder overhead crane or gantry crane (50–500 ton)

This is the workhorse of most mining sites. If you are moving ore from primary crushers to stockpiles, you need raw capacity and structural toughness. Look for:

• Box girder construction with full-penetration welds
• Hardened wheel flanges that resist abrasive wear
• Dual braking systems for safety redundancy
• Remote operation so your crew stays clear of danger zones

Why this type? Ore is heavy, abrasive, and needs to move fast. A gantry or double girder crane handles the load and the abuse. Single girder cranes simply cannot match the duty cycle.

Coal Handling and Preparation Plants

Best choice: Explosion-proof overhead crane (5–50 ton)

Coal plants present a unique challenge: methane gas and combustible dust. Every electrical component must be certified for hazardous zones. That means:

• Explosion-proof motors and enclosures (Ex d IIB T4 or higher)
• Spark-proof travel wheels (copper-tipped or stainless steel)
• Sealed electrical conduits with explosion-proof glands

Why this type? Standard cranes create sparks. In a coal plant, a spark can trigger an explosion. Explosion-proof design removes that risk at every level — from the motor to the travel wheels to the control circuits.

Maintenance Workshops

Best choice: Single or double girder overhead crane with VFD control (10–100 ton)

Every mine needs a workshop for servicing haul trucks, excavators, and draglines. Here, precision matters more than brute force. VFD (variable frequency drive) control lets operators position engine blocks and hydraulic cylinders within millimeters.

Why this type? Workshop cranes need accuracy, not just power. VFD speed control gives you smooth, precise movements — critical when you are fitting a $200,000 engine into a haul truck frame.

Mineral Processing Plants

Best choice: Gantry crane with grab or magnet (10–100 ton)

Processing plants deal with wet, corrosive materials. The crane needs sealed bearings, IP65-rated enclosures, and heavy-duty corrosion protection. A grab bucket lets you handle bulk material directly.

Why this type? The grab or magnet attachment handles the material directly — no bags, no pallets, just bulk throughput. The corrosion protection keeps the crane running in chemically aggressive environments.

Underground Mining

Best choice: Specialized mine hoist or explosion-proof crane (5–30 ton)

Space is tight underground. You need a compact crane with a low-profile trolley, flame-proof motors, and reliable performance in confined, hot, dusty conditions.

Why this type? Standard cranes are too big and create ignition risks underground. Mine-specific designs solve both problems in a compact package.

Stockyard Management

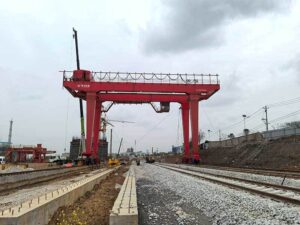

Best choice: Semi-portal or full-portal gantry crane (20–200 ton)

Stockyards need long spans (30–60 meters) to cover wide storage areas. These cranes work outdoors in all weather, so they need full weatherproofing and, ideally, remote operation capability.

Why this type? A gantry crane covers the entire stockyard from above — no ground-level obstructions, full weather protection, and remote control keeps operators safe.

Quick Reference: Crane Selection by Application

Here is a simple overview to help you match your application to the right crane:

Key Specs You Actually Need to Understand

You do not need an engineering degree to buy the right crane. But you do need to understand a few key specifications — and what they mean for your operation.

Duty Class: The Most Important Number

Bottom line: Never go below A6 for any production-area crane. If you run around the clock, demand A8.

Dust Protection (IP Rating)

The IP rating tells you how well the electrical system is sealed against dust and water. For mining, you want IP65 at minimum. This means the enclosure is dust-tight and protected against water jets. Anything less, and dust will get in and destroy your electronics.

Corrosion Protection Levels

• Standard:Epoxy primer + polyurethane topcoat. Fine for indoor workshops.
• Heavy-duty:Zinc-rich primer + epoxy intermediate + polyurethane topcoat. Needed for outdoor or wet environments.
• Marine-grade:Hot-dip galvanized members + ISO 12944 C5-M coating. Required for coastal mines.

Wrapping Up: Getting It Right the First Time

Mining crane selection comes down to matching the equipment to your real-world conditions — not your best-case scenario. Think about your actual duty hours, your dust levels, your corrosion risks, and your safety requirements. Then choose a crane that exceeds those demands, not one that barely meets them.

The difference between the right crane and the wrong one is not just in the purchase price. It shows up in uptime, maintenance costs, safety records, and total years of service. A crane that costs 15% more upfront but lasts 10 years longer is the cheaper option every single time.

If you need expert guidance on selecting cranes for your mining operation, YUZHONG brings nearly 48 years of heavy-industry manufacturing experience to every project. Our mining crane solutions cover 0.5 to 500 tons, with full ATEX, IECEx, ISO 9001, CE, and FEM certifications. We have installed cranes in mining operations across more than 90 countries — and we know what it takes to keep them running in the toughest conditions on earth.

Frequently Asked Questions

What types of cranes are used in mining?

It depends on the job. For ore extraction, you will typically see heavy-duty gantry cranes or double girder overhead cranes (50–500 ton). Coal handling plants use explosion-proof overhead cranes. Maintenance workshops run single or double girder cranes with VFD precision control. And underground mining needs specialized mine hoists or compact explosion-proof cranes. The key is matching the crane to your specific application — not just picking the biggest one you can afford.

Why do coal mines need explosion-proof cranes?

Because coal mines produce methane gas and coal dust — both of which explode when they meet a spark. A standard crane creates sparks from its motors, travel wheels, and electrical connections. Explosion-proof cranes eliminate every ignition source. They use sealed motors (Ex d IIB T4), copper-tipped spark-proof wheels, and intrinsically safe control circuits. It is not just a safety measure — in most countries, it is the law.

What duty class does a mining crane need?

For any production-area crane, A6 is the absolute minimum. That gives you about 1,500 operating hours per year at full load. But most mining operations need more than that. If you run continuous ore processing or a 24/7 stockyard, you want A7 or A8. Putting in an A5 crane to save money is a false economy — it will wear out fast, cost more in repairs, and create unplanned downtime that far exceeds whatever you saved on the purchase.

How do mining cranes survive all that dust and abuse?

Good mining cranes use multiple layers of protection. Electrical enclosures are sealed to IP65 or higher, so dust cannot get in. Control cabinets have filtered ventilation to keep electronics clean. Wheel flanges are hardened to resist abrasive wear. And the entire structure gets a heavy-duty coating — usually zinc-rich primer plus polyurethane topcoat — to fight both corrosion and abrasion. On top of that, enclosed bus bar systems replace exposed angle iron, and protected lubrication points make regular maintenance easier.

What safety features are must-haves for mining cranes?

Start with dual braking systems — a service brake plus an emergency brake. Then add dual upper limit switches on independent circuits, overload protection with data logging, and an emergency lowering system for power failures. If you are handling molten material or lifting personnel, backup power is mandatory. Modern operations also use remote monitoring with real-time load and position data, vibration sensors for predictive maintenance, and wire rope condition monitoring. All of these need quarterly testing and full documentation to meet mining safety regulations.
